- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
- Product Segment
AX 3000 (2402Mbps+574Mbps)
- Coverage
Large homes
- Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 2402 Mbps
- Antenna
External antenna x 4
- Transmit/Receive
2.4 GHz 2 x 2
5 GHz 2 x 2
- Processor
1.5 GHz tri-core processor
- Memory
256 MB Flash
512 MB RAM
- Wi-Fi Technology

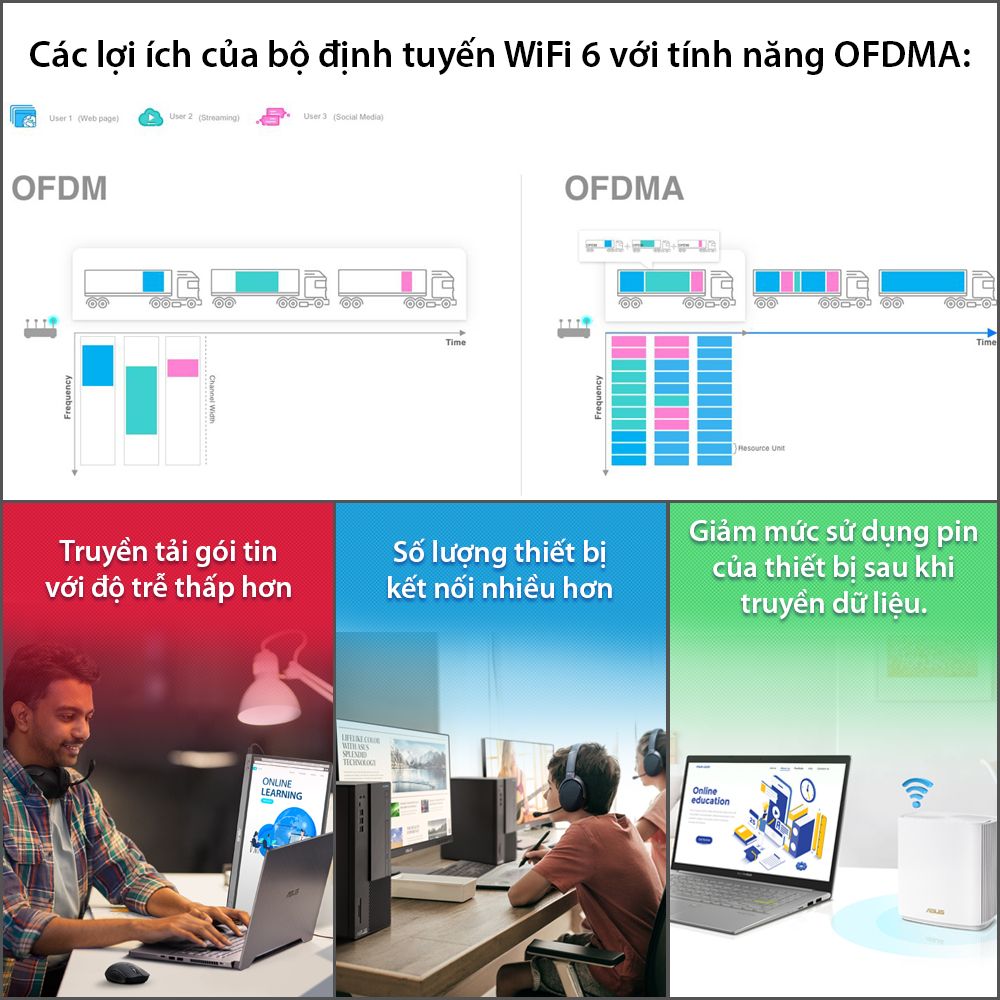

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
- Operating Frequency
2.4 GHz / 5 GHz
- Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
- Firewall & Access Control
Firewall: SPI intrusion detection, DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter
- Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
- VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- Ports

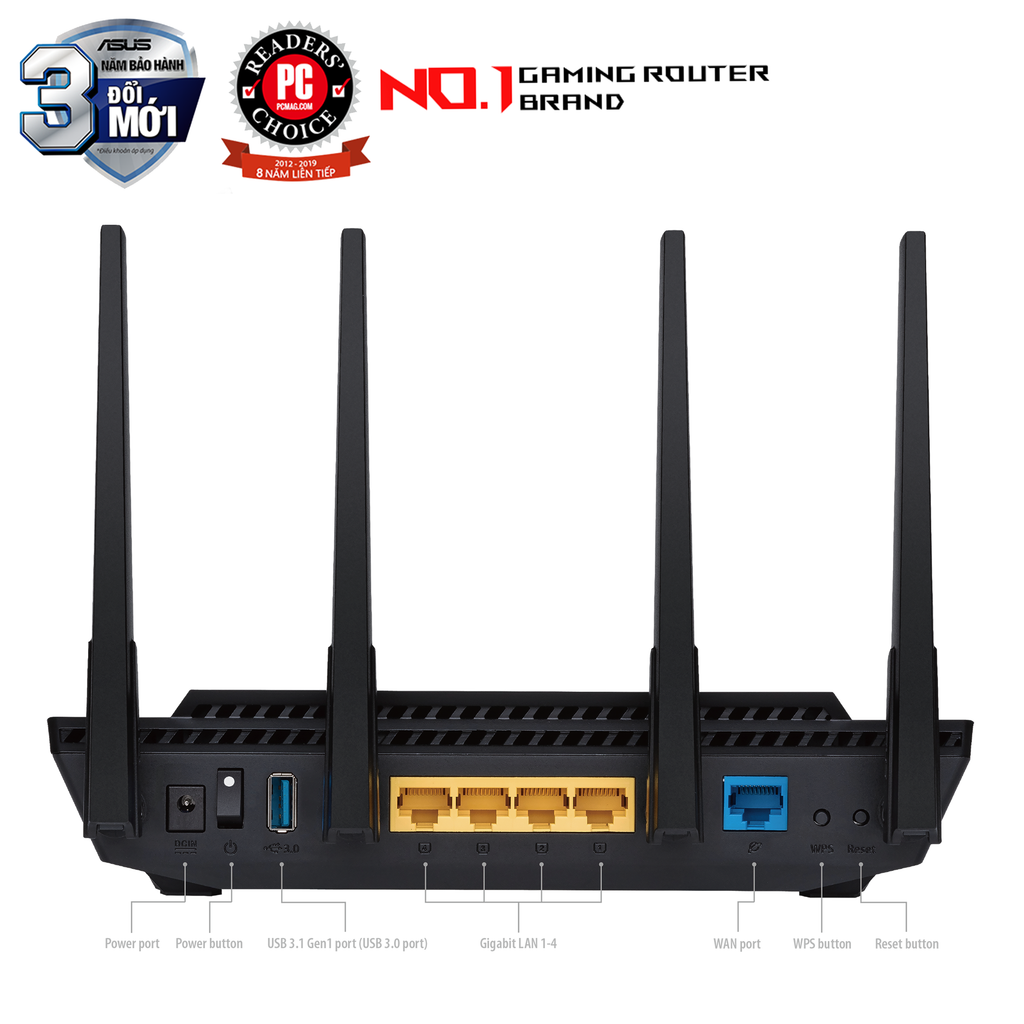

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1
- Features
Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network :
VPN server : PPTP Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Beamforming
- Button
WPS Button, Reset Button, Power Switch
- LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
- Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
- OS Support
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
- Dimensions
224 x 154 x 160 mm (LxWxH)
- Weight
538 g
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
